August 7, 2019
Elasticsearch provides search functionality for some of the most important websites in the world including Wikimedia (i.e. Wikipedia), eBay, Yelp, Tinder, and many others. Elasticsearch is super scalable, which means that just as easily as it can be scaled it up for use in huge complex systems, it can also be scaled down for use in smaller projects.
ES Local Indexer is a small desktop search application that runs on top of a local Elasticsearch installation. It indexes HTML documents into Elasticsearch and provides an intuitive browser-based interface for searching through the ingested documents. The ES Local Indexer project consists of two main components:
- An indexing app – indexes all documents in a given directory tree into Elasticsearch.
- A searching app – generates and displays the search results.
ES Local Indexer is simple to use. In order to ingest HTML documents into Elasticsearch and then search them, just start a local instance of Elasticsearch, ingest data into Elasticsearch with the indexing app, and then start the searching app. After starting the searching app, use a browser to view the search results.
The ES Local Indexer project is intended for the following scenarios:
- It can be used as a reference for implementing search functionality within a larger project or as a base for implementing a full-featured search application.
- It can be used for indexing previously downloaded html documents, and providing search capabilities across those documents. This could be useful for example if one knows they will not have internet access for some amount of time (such as while on an airplane), and need to be able to search previously downloaded documents.
Requirements and Installation
See the ES Local Indexer gitub page for installation instructions.
Ingesting local documents data into Elasticsearch
To test ES Local Indexer with real documents, download offline Elasticsearch documentation in HTML form from https://github.com/elastic/built-docs. Once downloaded, the HTML documents are ready for ingestion into Elasticsearch.
In order to ingest the HTML documents, execute the following command replacing PATH_TO_DOCS with the path to the documentation directory, and INDEX_NAME with the name of the Elasticsearch index that will ingest the HTML from each page:
python3 indexing_app.py -p PATH_TO_DOCS -i INDEX_NAME
In my environment, the exact command that I enter to ingest the HTML Documentation into Elasticsearch is the following:
python3 indexing_app.py -p ~/Documents/built-docs/ -i built_es_docs_idx
Once the ingestion process has started, move on to the next step (although search results will be more meaningful ingestion has completed).
Launch the search application
Once documents have been ingested into Elasticsearch, the code to launch the search interface web app can be executed as follows:
python3 searching_app.py -p PATH_TO_DOCS -i INDEX_NAME
The PATH_TO_DOCS and INDEX_NAME should be the same as the values specified when ingesting the documents into Elasticsearch. In my environment, the exact command to launch the search interface web app is the following:
python3 searching_app.py -p ~/Documents/built-docs/ -i built_es_docs_idx
Point a browser to http://127.0.0.1:5000/, and begin searching the documents that were previously downloaded and indexed into Elasticsearch.
Using the search application

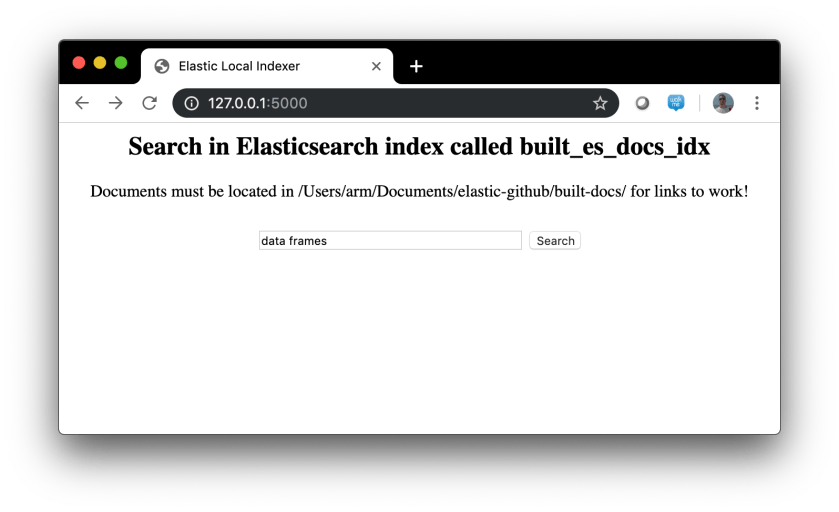

The search interface is designed to mimic popular search applications such as Google or Bing. The main search page appears as follows:

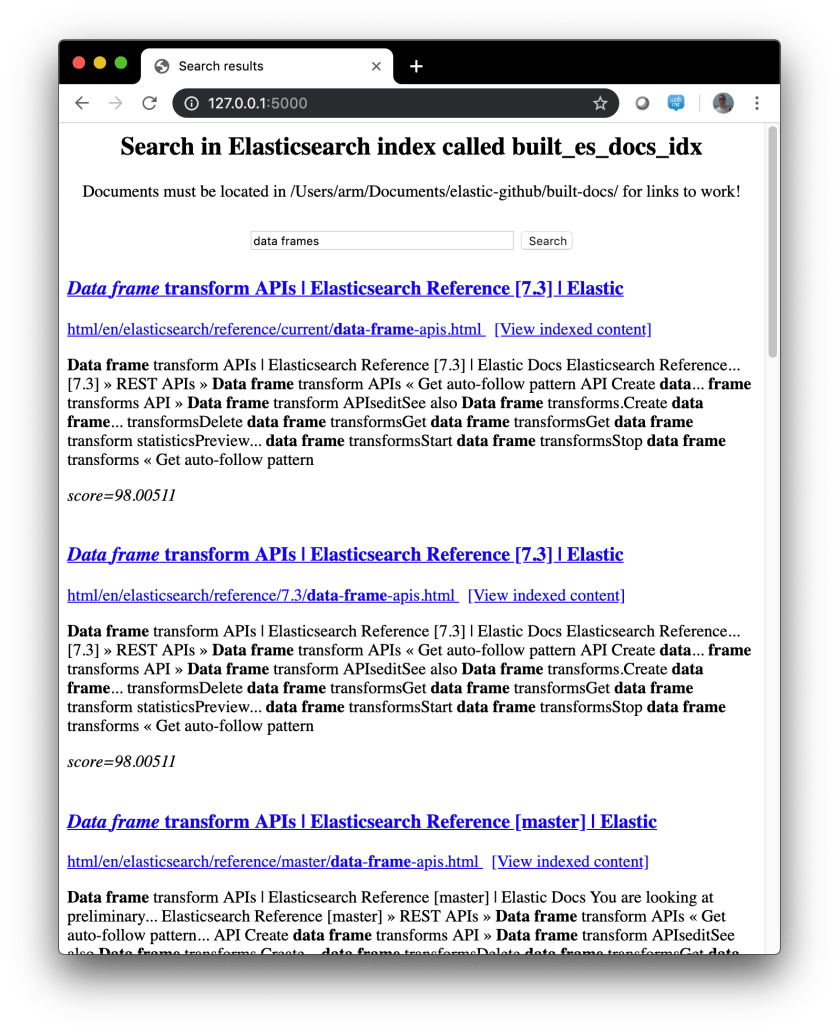

After hitting the search button, results will appear as follows:
Notice that in the above results it appears that the first three hits are identical. This is because we have ingested basically the same document three times – current, 7.3, and master – each of which contains the same information, and so it is not surprising that we have three hits each with the same score. We get better results if we include the version in our search request as follows:
Now the first three documents are different and they all correspond to documentation for version 7.3 of Elasticsearch. While this is much better than before, it could be made even better by taking advantage of domain-specific knowledge that we have with respect to Elasticsearch documentation. If this were an application that were designed for only displaying Elasticsearch documentation, it would make sense to:
- Ensure that a “version” field is created when each document is indexed into Elasticsearch.
- Include a drop-down menu to allow the user to select which version of documentation they are interested in seeing.
- Filter documents for a specific version by using a bool filter to ensure that all documents that do not match the desired release are filtered out and not displayed.
However, we have not implemented the above domain-specific enhancements because ES Local Indexer is designed to be a generic implementation.
In this blog we have presented ES Local Indexer. This is a desktop search application that provides capabilities to ingest HTML documents from a local source into Elasticsearch, and that displays a web-based interface for searching these documents. ES Local Indexer can be used for searching downloaded HTML content, or it can be used as a base for larger projects that require search functionality.
